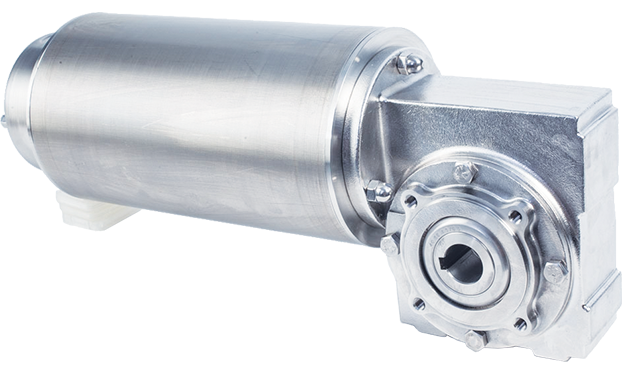

Stainless steel worm gear reductor WRSH2 and WRSH3
The WRSH worm gear reducer is an all-round usable drive. Through many years of continuous development, the design has been continuously improved. Manufactured from cast and electropolished stainless steel 304, in accordance with EHEDG. The protection class is IP69k, which means that it is high-pressure spray-resistant according to DIN-40050. The maximum water pressure is 100 bar, with a maximum temperature of 80˚C. This ensures effortless high-pressure cleaning. The surface is smooth and the edges are rounded, making the gearbox ideal for applications within environments that must comply with HACCP regulations, as well as situations with special hygiene and cleaning requirements or extremely humid environments. For example: food and dairy production, meat, fish and poultry processing and the pharmaceutical industry.
Get in touch Download brochure Drive configurator
In this series transmission ratios are possible from 3.6:1 – 75:1. In combination with a 2-, 4-, 6-, or even 8-pole ABI MRS motor, a large speed range can be covered. The maximum torque to be transmitted varies per transmission ratio up to 80Nm. A robust drive is created by mounting the motor directly to the gear unit.
- Torque up to 80Nm
- Gear ratio from 3.6:1 to 75:1
- Compact attachment
- IP69k certified
- AISI 304 (electropolished)
- Designed according to EHEDG guidelines
- Low maintenance and long life
- High efficiency
